EDGE NETWORKING

Ethernet Switch Boards for Embedded System Integration

Bare-board Ethernet switches engineered for direct integration into UAVs, ground robots, underwater vehicles, and industrial platforms. Compact, rugged, and built for the environments where standard networking hardware fails.

What Boards Are

The Networking Layer Built Into Your Platform

SHOP BOARDS

SWITCHBLOX

Most embedded systems don't need a managed rack switch. They need a compact, reliable Ethernet backbone that fits on the board stack, survives the environment, and disappears into the architecture.

BotBlox Boards are unmanaged and lightly managed Ethernet switches in bare-board format. No enclosure. No unnecessary overhead. Just the switching fabric your system needs, at the size and weight your platform allows.

Every board in the family is designed for direct PCB integration or bracket mounting inside an electronics module. All variants are tested to MIL-STD-810H environmental standards — the same benchmark used to qualify military hardware for field deployment.

Function

Smallest board footprint (in²)

Port speeds (Mbps / Gbps)

Port count

Operating temperature (°C)

Layer 2 Ethernet Switching

100 Mbps to 1 Gbps

3 to 5

-40 to +85

The Boards Family

Six Boards, One Architecture

Automotive (Single Pair) Ethernet

Industrial Networking

Rugged Networking

SHOP BOARDS

SwitchBlox – BotBlox networking hardware

Boards

VIEW IN THE SHOP

SwitchBlox

Dimensions

44.5 × 44.5 × 11.3 mm

Ports

5 × 10/100BASE-T

Power

300 mW idle · 700 mW max

Input Voltage

5–60 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

Boards

VIEW IN THE SHOP

SwitchBlox

Dimensions

44.5 × 44.5 × 11.3 mm

Ports

5 × 10/100BASE-T

Power

300 mW idle · 700 mW max

Input Voltage

5–60 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

SwitchBlox Nano – BotBlox networking hardware

Boards

VIEW IN THE SHOP

SwitchBlox Nano

Dimensions

25.5 × 25.5 × 7.2 mm

Ports

3 × 10/100BASE-T

Power

220 mW idle · 400 mW max

Input Voltage

5–45 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

Boards

VIEW IN THE SHOP

SwitchBlox Nano

Dimensions

25.5 × 25.5 × 7.2 mm

Ports

3 × 10/100BASE-T

Power

220 mW idle · 400 mW max

Input Voltage

5–45 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

Boards

VIEW IN THE SHOP

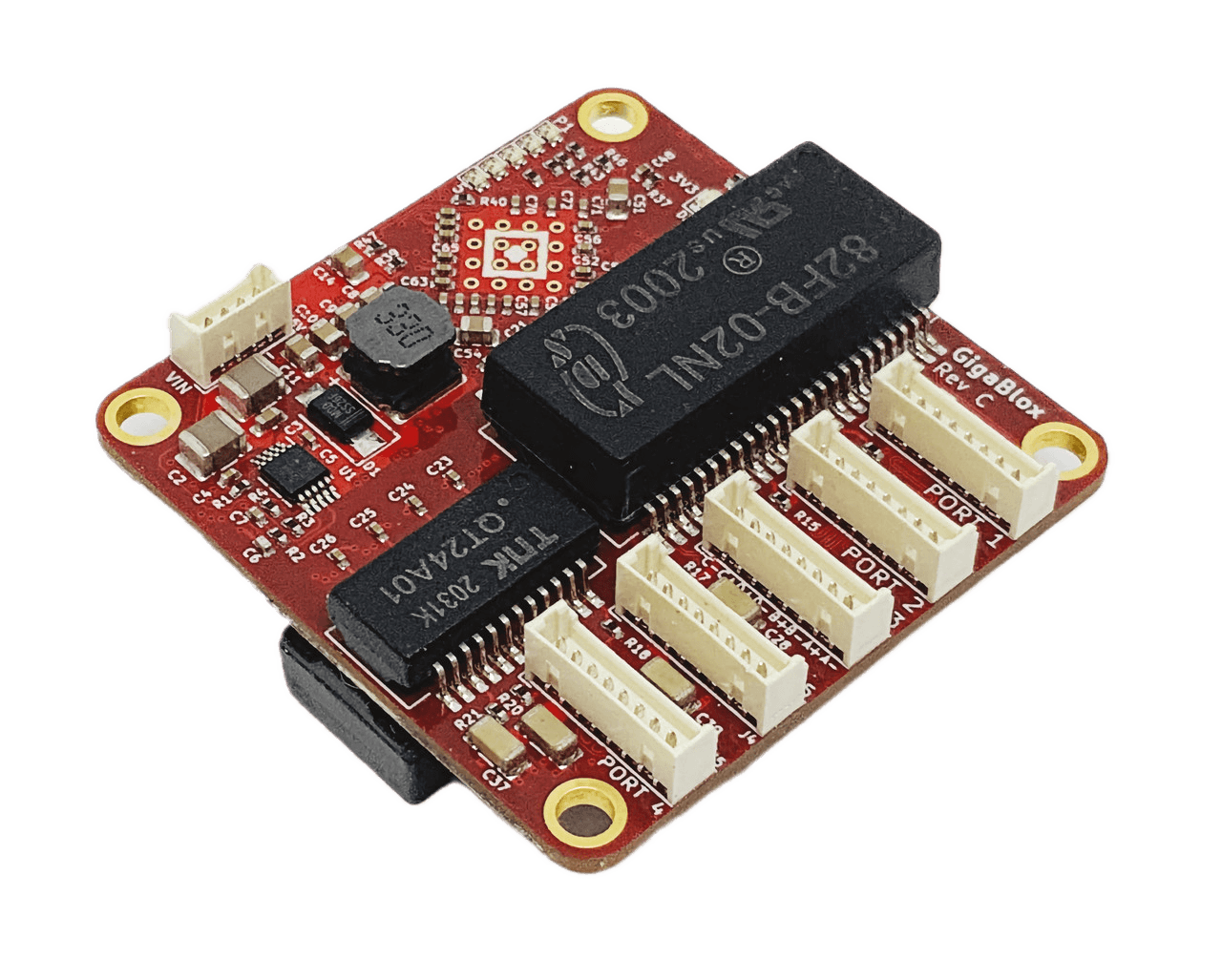

GigaBlox

Dimensions

45 × 45 × 16 mm

Ports

5 × 10/100/1GBASE-T

Power

260 mW Idle · 1.1 W Max

Input Voltage

5–60 V

Temperature

−20°C → +85 °C

Rating

1 Gbps

Boards

VIEW IN THE SHOP

GigaBlox

Dimensions

45 × 45 × 16 mm

Ports

5 × 10/100/1GBASE-T

Power

260 mW Idle · 1.1 W Max

Input Voltage

5–60 V

Temperature

−20°C → +85 °C

Rating

1 Gbps

SwitchBlox for Ardupilot – BotBlox networking hardware

Boards

VIEW IN THE SHOP

SwitchBlox for Ardupilot

Dimensions

44.5 × 44.5 × 11.3 mm

Ports

5 × 10/100BASE-T

Power

300 mW idle · 700 mW max

Input Voltage

5–60 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

Boards

VIEW IN THE SHOP

SwitchBlox for Ardupilot

Dimensions

44.5 × 44.5 × 11.3 mm

Ports

5 × 10/100BASE-T

Power

300 mW idle · 700 mW max

Input Voltage

5–60 V

Temperature

−10°C → +80 °C

Rating

10/100 Mbps

DroneNet for Ardupilot – BotBlox networking hardware

Boards

VIEW IN THE SHOP

DroneNet for Ardupilot

Dimensions

44.5 × 44.5 × 8 mm

Ports

5 × 10/100BASE-T

Power

500 mW Idle · 2 W max

Input Voltage

4.75–5.5 V

Temperature

−10°C → +70 °C

Rating

10/100 Mbps

Boards

VIEW IN THE SHOP

DroneNet for Ardupilot

Dimensions

44.5 × 44.5 × 8 mm

Ports

5 × 10/100BASE-T

Power

500 mW Idle · 2 W max

Input Voltage

4.75–5.5 V

Temperature

−10°C → +70 °C

Rating

10/100 Mbps

GigaBlox SFP – BotBlox networking hardware

Boards

VIEW IN THE SHOP

GigaBlox SFP

Dimensions

52.5 × 52.5 × 21.5 mm

Ports

5 × 1GBASE-T · SFP (1000BASE-X)

Power

1.1W Idle · 4.5W max

Input Voltage

5–60 V

Temperature

−20°C → +85 °C

Rating

1 Gbps

Boards

VIEW IN THE SHOP

GigaBlox SFP

Dimensions

52.5 × 52.5 × 21.5 mm

Ports

5 × 1GBASE-T · SFP (1000BASE-X)

Power

1.1W Idle · 4.5W max

Input Voltage

5–60 V

Temperature

−20°C → +85 °C

Rating

1 Gbps

System Integration

How Boards Fit Into Your Embedded Architecture

FORM FACTOR

Smallest Form Factor Possible

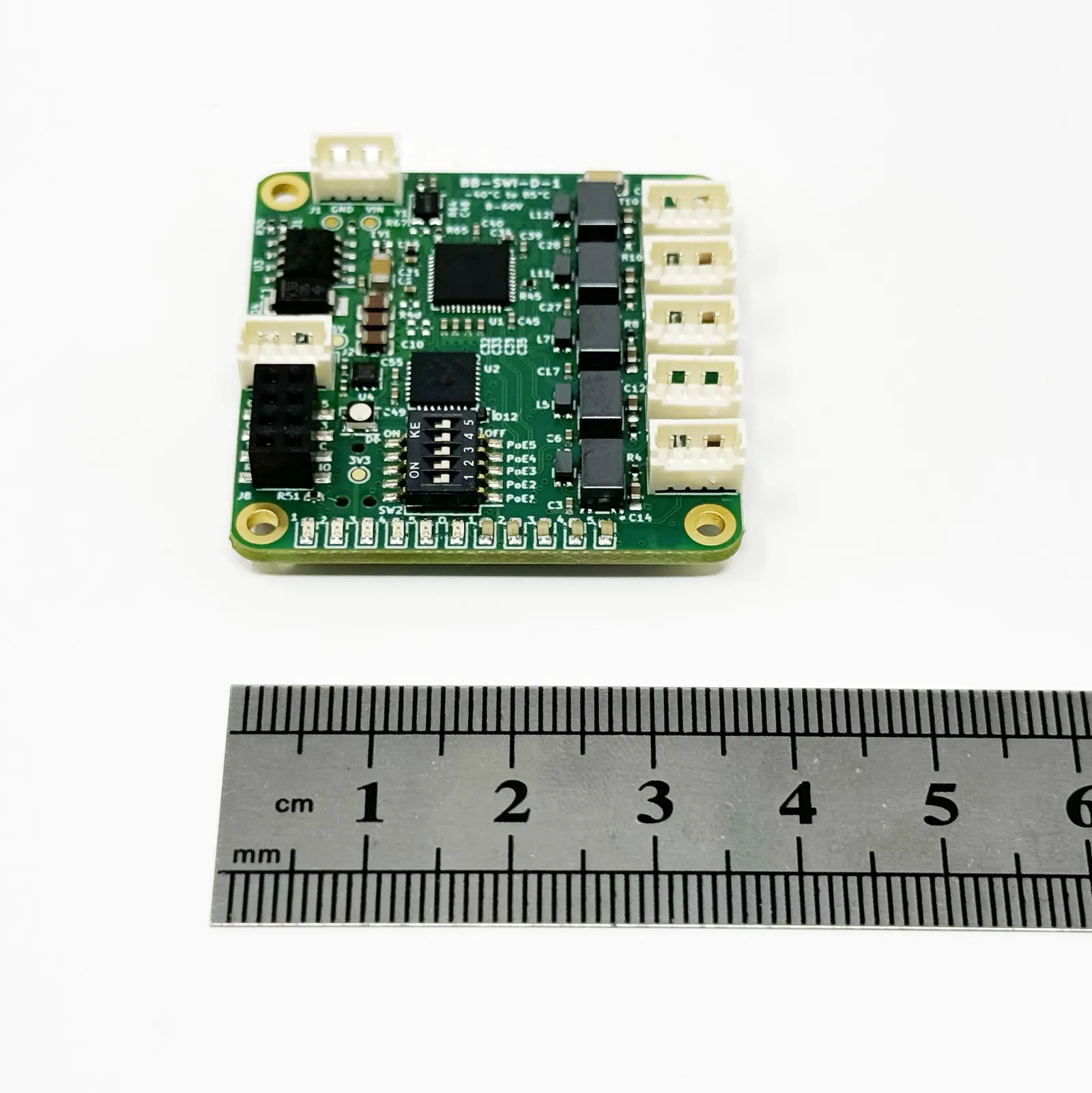

By shrinking the Ethernet circuitry down to just a bare board, we're able to achieve the smallest form factors possible while retaining full performance with the ethernet specification. For applications that are very SWaP sensitive, boards offer the best solution.

CONNECTIVITY

Cable Mate

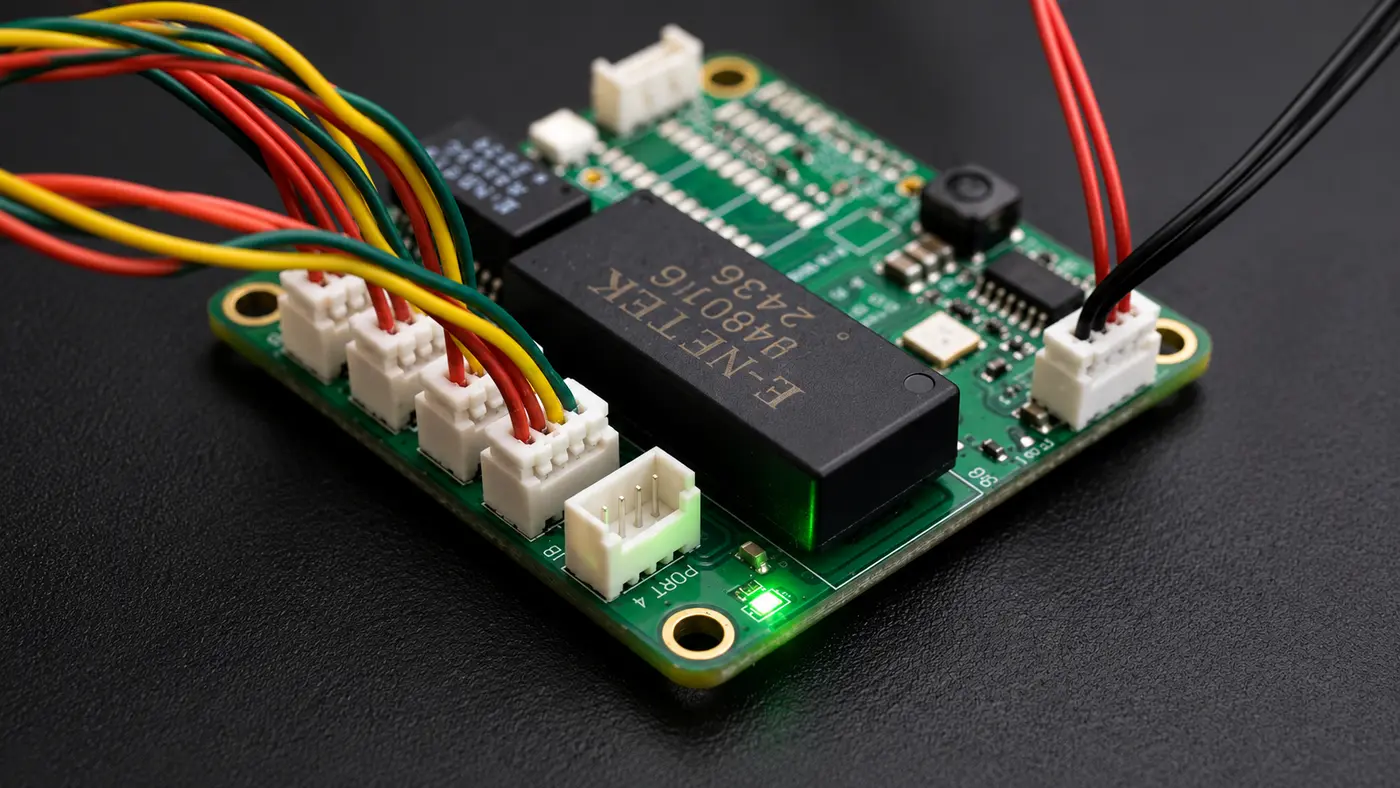

BotBlox boards use headers such as Molex PicoBlade, PicoClasp and JST to mate directly with cables. This is far more space efficient than RJ-45 headers, while still being able to handle up to 10Gbps ethernet.

CONFIGURATION

Close-up of BotBlox PCB circuit traces with "Assembled in the USA from globally sourced components" — NDAA Section 889 compliant embedded networking hardware

NDAA Compliance

For applications that are supply chain sensitive, we offer NDAA compliant versions of nearly all our boards. Both our NDAA and non-NDAA compliant boards share the same design, allowing them to be interchanged within a system. Look for the blue colored boards if you need NDAA compliance.

FEATURES IN ACTION

Built for Environments Where Commercial Hardware Fails

Every board in the BotBlox family is tested to MIL-STD-810H — the U.S. Department of Defense standard for environmental qualification. Tests are conducted under operational conditions with continuous network load, not powered-off storage tests.

Temperature Range

−40°C to +85°C

Validated under high and low temperature, thermal shock, and rapid decompression at altitude equivalent to 30,000 ft.

Temperature Range

−40°C to +85°C

Validated under high and low temperature, thermal shock, and rapid decompression at altitude equivalent to 30,000 ft.

Vibration & Shock

90g / 6ms

Tested across three axes at frequencies representative of rotary-wing UAVs, ground vehicles, and industrial machinery.

Vibration & Shock

90g / 6ms

Tested across three axes at frequencies representative of rotary-wing UAVs, ground vehicles, and industrial machinery.

Humidity

95% RH

Operated continuously at 95%+ relative humidity with no degradation in throughput or link stability.

Humidity

95% RH

Operated continuously at 95%+ relative humidity with no degradation in throughput or link stability.

Radiation (Space variants)

20 krad[Si]

TID radiation testing with Cobalt-60 at incremental doses up to 20 krad[Si]. No measurable performance degradation.

Radiation (Space variants)

20 krad[Si]

TID radiation testing with Cobalt-60 at incremental doses up to 20 krad[Si]. No measurable performance degradation.

Where Boards Are Deployed

From UAVs to Fusion Reactors

BotBlox Boards are integrated into platforms operating across six application domains.

Each environment imposes different constraints on size, weight, vibration tolerance, and data throughput.

AERIAL

Black render of a fixed-wing UAV aircraft

UAVs & Aerospace

Network-managed flight systems where weight, voltage range, and EMI tolerance decide whether the platform stays airborne.

SPACE

Black render of a satellite with solar panels and a dish antenna

Space Systems

Compact Ethernet switching for spacecraft buses where every gram, every milliwatt, and every qualified component matters.

SUBSEA

Black render of an autonomous underwater vehicle

Underwater Vehicles

Sealed-environment networking for AUVs and ROVs operating under crushing pressure, saltwater corrosion, and signal blackouts.

GROUND

Ground Robotics

Rugged switching for UGVs facing shock, vibration, dust, and unstable power across defense, mining, and inspection deployments.

INDUSTRIAL

Factory Automation

Deterministic Ethernet for robot arms and assembly cells where latency, jitter, and EMI immunity decide production uptime.

MOTOSPORT

Black render of a Formula-style race car

Race Telemetry

High-bandwidth telemetry switching aboard race cars, surviving heat, vibration, and electromagnetic interference at racing speed.
